Raw Material Fine Grinder Double Roller Crusher Machine Clay Block Production Equipment
Fine Pulverizing High Speed Roller Crusher / Roller Crusher Machine for Automatic Brick Making Line
This high-speed roller crusher features two rollers running at different linear speeds, delivering combined extrusion, tearing and cracking effects for efficient fine crushing.
The movable roller adopts hydraulic cylinder drive to adjust crushing pressure flexibly for diverse raw materials. The heavy steel plate welded frame ensures high structural strength, strong overload resistance and impact resistance.
Screw adjusting devices on both sides of the fixed roller allow easy position compensation after roller ring wear. The cylinder-driven mud scraper fits tightly against the roller surface for reliable cleaning, with simple maintenance and replacement.
The main unit is mounted on a section steel welded base, with an optional grinding lathe base for convenient roller ring maintenance. Each roller is equipped with an independent stepless speed reduction motor, enabling safe, energy-saving single-roller operation during overhaul without starting the main motor.
Raw Material Double Roller Crusher Clay Block Production Equipment
Fine roller crusher of technical parameters:
| Technical Parameters | | GS8060 | GS1080 | GS1210 | GS1412 |
| Production capacity | t/h | 30-50 | 55-75 | 70-90 | 90-120 |
| Roller diameter*width | mm | 800*600 | 1,000*800 | 1,200*1,000 | 1,400*1,200 |
| Tangential speed / | m/sec | 1412 | 1412 | 1412 | 1412 |
| Required power | Kw | 37+30 | 55+75/90 | 110+75 | 160+90 |
| Approximate weight | Kg | 5,900 | 14,800 | 23,000 | 34,000 |
| Total length | mm | 5,122 | 6,200 | 6,800 | 7,800 |
| Total width | mm | 1,400 | 4,000 | 4,460 | 6,500 |
| Total Height | mm | 1,430 | 1,700 | 2,860 | 2,300 |

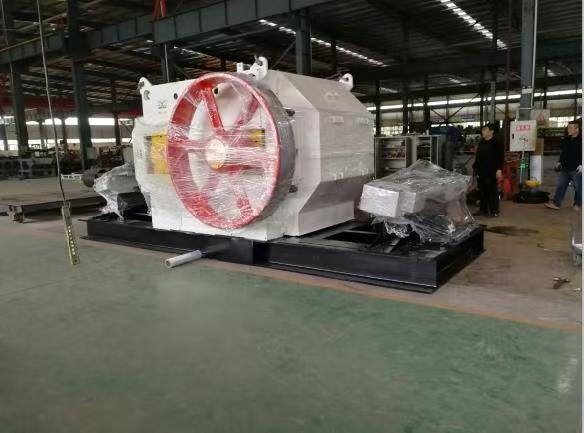

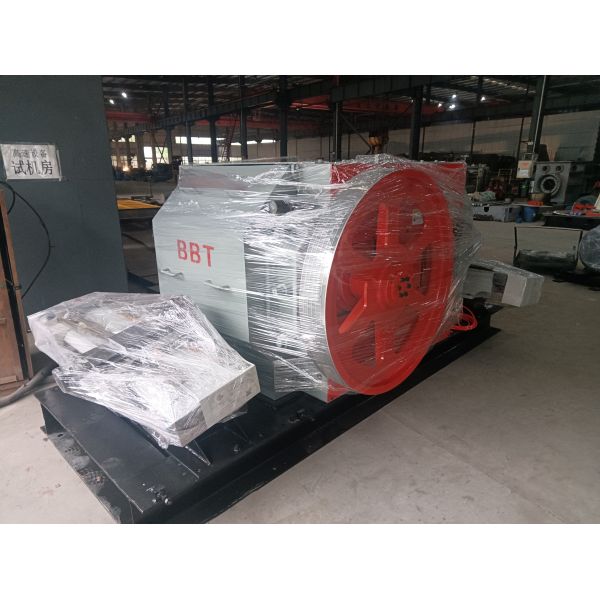

Clay Brick Fine Roller Crusher Machine for shipment
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
