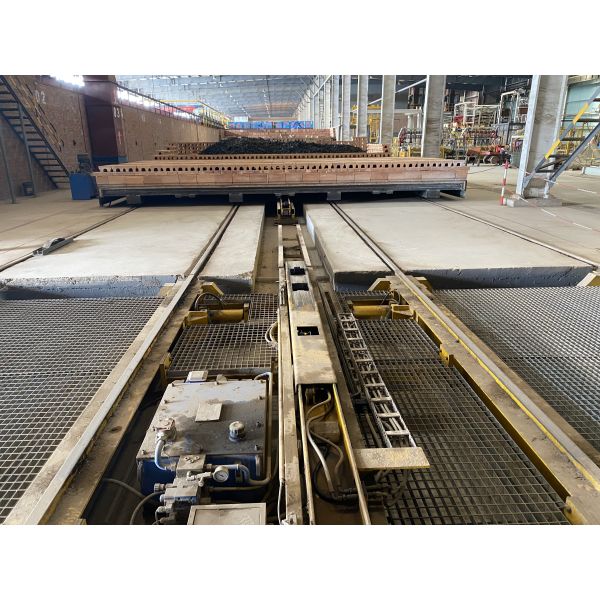

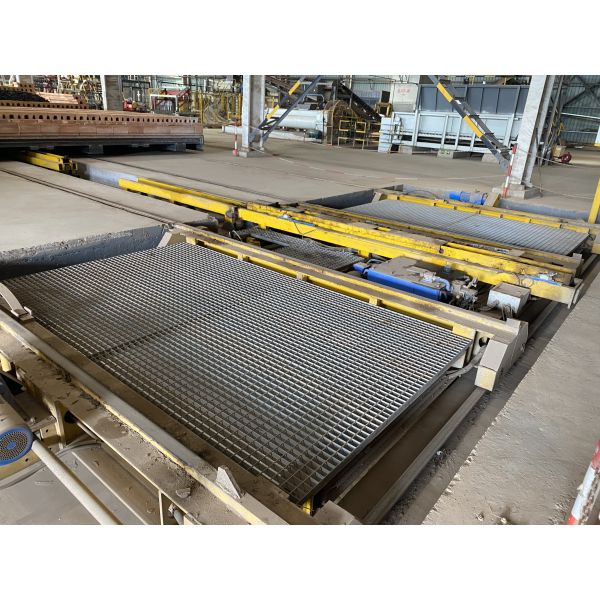

Automatic Clay Brick Tunnel Kiln Process Design for Full Automatic Brick Plant
Project Overview:
This 4.6-meter full-automatic tunnel kiln project is a complete continuous firing production solution specially designed for large-scale sintered brick factories. The whole production process from raw material crushing, stirring, extrusion molding, automatic cutting, robot stacking, drying to tunnel kiln firing and automatic unloading is fully automated, with little manual operation required.
The tunnel kiln adopts advanced internal thermal insulation structure, reasonable flue gas circulation system and waste heat recovery technology. It can use clay, shale, coal gangue, sludge and other industrial solid waste as raw materials. The kiln runs continuously 24 hours a day with stable temperature, uniform firing quality, low energy consumption and low pollution. It is the most mainstream and reliable brick factory production line in modern brick industry.
This project can produce standard red bricks, hollow bricks, perforated bricks and other sintered products.
The finished bricks have high strength, regular shape and stable quality. The whole plant features high output, energy saving, environmental protection and easy operation.
4.6m Energy Saving Tunnel Kiln Turnkey Project, Automatic Sintered Brick Plant with Waste Heat Recovery
Tunnel Kiln Main Technical Parameters:
- Kiln Effective Width: 4.6 meters.
- Kiln Total Length: Customized according to output demand, usually 120m–180m.
- Production Capacity: 30,000 to 60,000 standard bricks per day.
- Applicable Raw Materials: Clay, shale, coal gangue, fly ash, sludge, solid waste mixture.
- Brick Types Available: Solid red bricks, hollow blocks, perforated bricks, special-shaped sintered bricks.
- Working Mode: 24-hour continuous automatic operation.
- Combustion Method: Natural gas, coal gas, biomass fuel, coal fuel optional.
- Energy Saving Design: Full waste heat recovery for drying chamber heating, low heat loss.
- Automation Level: Automatic batching, automatic mixing, automatic molding, automatic setting, automatic firing, automatic unloading
- Kiln Temperature Control: Intelligent PLC automatic temperature control, uniform temperature inside kiln.
- Service Life: More than 15 years stable working life.
- Environmental Standard: Meet national and international environmental emission requirements.
Complete Tunnel Kiln Process Design & Turnkey Project for Clay Brick Factory
Project Advantages:
- High daily output, stable production and fast return on investment.
- Full automatic control, save labor cost greatly.
- Low fuel consumption, energy saving and high efficiency.
- Simple structure, easy maintenance, low failure rate.
- Green environmental protection, no pollution emission.
- Complete one-stop turnkey project design, installation and after-sales service.
Fully Automatic Tunnel Kiln Brick Plant Turnkey Project
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
