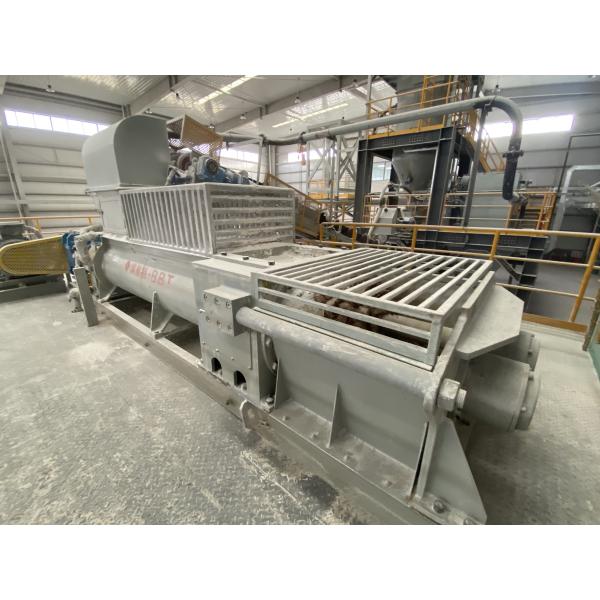

MDE Series Double Twin Shaft Mixer for Bentonite Processing Automatic Plant

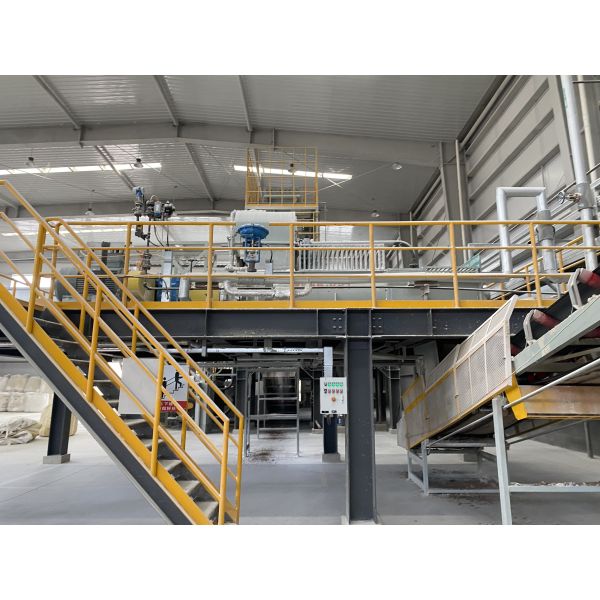

Double Shaft Mixer for Bentonite Plant Paddle Mixer in Automatic Production Site
Bentonite Plant Double Shaft Mixer
Double Shaft Clay Mixer for Brick Making Machine Mixing Tank Mixing Series. Double shafts mixer is suitable for continuous mixing of mixed fertilizer powder, usually used after automatic batching equipment.

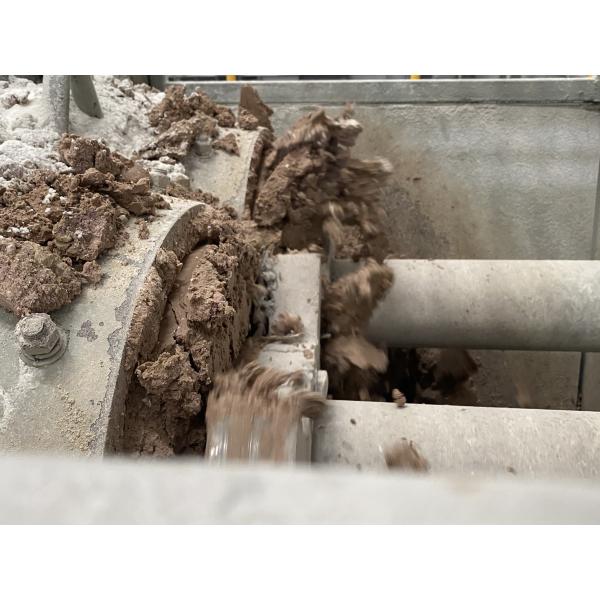

The working principle is that the materials go into the mixing tank, then through a pair of screw shafts with opposite rotating, they are stirred uniform, and enter the next granulation process.
Key Features
- High efficiency, high wear-resistant alloy. It has high stirring efficiency and little floor space. The spiral blade is made of special alloy with high wear resistance.
- Low noise. The double shafts mixer adopts reducer drive, steady rotation and low noise.
- Reasonable structure. To improve mixing uniformity, we use new rotor structure with minimal adjustable gap between rotor and mixing chamber.
- Smooth operation. Tight sealing between joints ensures smooth operation.
Technical Parameters
| Specification Model | Capacity (m³/hr) | Power Requirement (kw) | Rotate Speed(t/m) | Exterior Dimension (mm) |
| MDE320B | 22-26 | Y6-45 | 35 | 5170*1470*870 |
| MDE360B | 23-31 | Y6-55 | 35 | 5480*1520*930 |
| MDE400B | 28-41 | Y6-75 | 35 | 5500*1520*980 |
| MDE500B | 33-47 | Y6-110 | 35 | 5800*1600*1200 |
| MDE410A | 37-41 | Y6-75 | 35 | 5170*1470*870 |
Complete Clay Brick Making Equipment
BBT supply full auto clay brick making line machinery and equipment including:
- TCNL series of Chain full steel type box feeder
- TWGD series of double shaft mixer
- GS series of roller crusher
- TRA series of double tooth roller crusher
- TWJH series of front grid extruding mixer
- TWPM series of wet pan mill
- QTQG series of cutter
- EV series of vacuum extruder
- Robot setting machine
- Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
